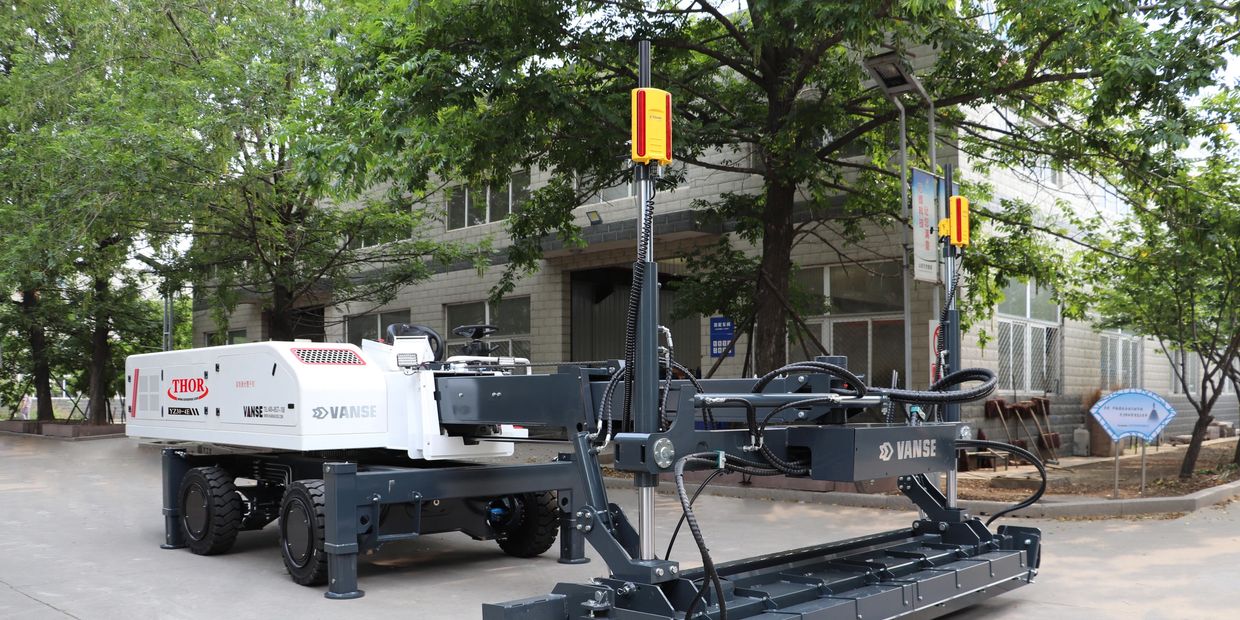

YZ30-4E BOOM LASER SCREED
The YZ30-4E is a high-performance boom laser levelling machine designed to meet the rigorous demands of modern construction. Engineered for precision and ease of operation, this machine features a fully rotational body, advanced automatic levelling, and compatibility with 3D profiler systems. It is equipped with a high-pressure cleaning system and durable components that ensure reliable performance and low maintenance.
Key Features
- 360° Body Rotation for superior maneuverability on site.
- One-Click Auto-Levelling handles complex terrains effortlessly.
- Automatic Leveling System ensures high accuracy and reduces labor intensity.
- Built-in Cleaning System with 150 Bar pressure and a large capacity water tank.
- Solid Rubber Tyres with grooved tread, puncture-resistant and comfortable.
- Soft Landing System on working head for added safety and precision.
- Enhanced Accessory Set included for improved maintenance and versatility.
- Compatible with 3D Profiler Systems for automated high-precision applications.
Technical Specifications
Engine Model Yanmar 4TNV94L Power 35kW / 48HP Fuel Type Diesel Fuel Tank Capacity 100L Exciting Force 4500N (Max) Levelling Width 3.1M / 10.17ft Net Weight 5800KG / 12787LBS Telescopic Arm 6M / 19.69 FT (360° rotation) Tyre Type Solid non-slip (optional inflatable) Levelling Head Swing Left Swing: 45° / Right: 75° Paving Mode Hydraulic Spiral Conveyor Steering Modes Two-wheel, Four-wheel, Crab steering Outline Dimensions (L×W×H) 5550×3700×1870MM / 18.21×12.14×6.14FT Transport Size (L×W×H) 8000×2200×1970MM / 26.25×7.22×6.46FT
Precision laser screed for sale
360 Degree Rotating Telescopic Arm
Precision laser screed for sale
The 3-meter levelling machine head can rotate, swing and can complete the levelling of 18 square metes of concrete each time.
Control Panel
360 Degree Rotating Telescopic Arm
Precision laser screed for sale
The flexible and efficient hydraulic system can control the height of the cutting board and the cloth spiral to maintain levelling.
360 Degree Rotating Telescopic Arm
360 Degree Rotating Telescopic Arm
360 Degree Rotating Telescopic Arm
With a reach of up to 6 meters, the rotating platform offers speed and efficiency on every job.
Standard Cleaning System
Standard Cleaning System
360 Degree Rotating Telescopic Arm
Equipped with a high-capacity water tank and a standard cleaning system delivering up to 150Bar of pressure for quick and efficient flushing.
Wheels
Standard Cleaning System
Wheels
Four steering wheels with hydraulic support enable crab-walk functionality, enhancing efficiency while reducing time and labor.
