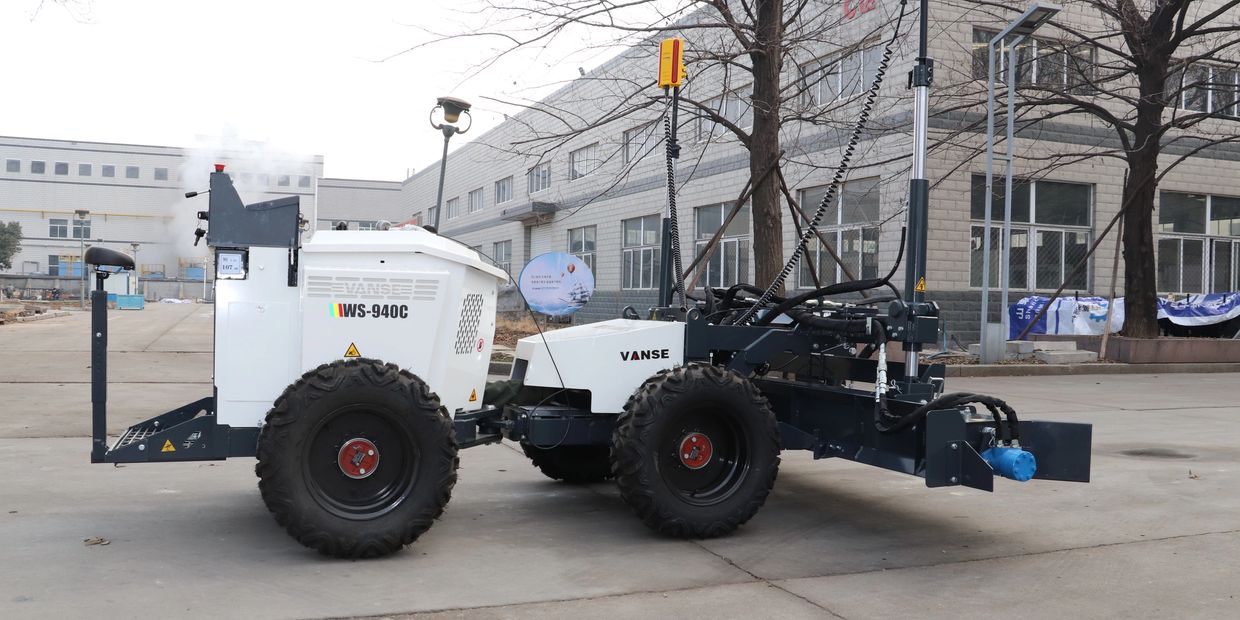

ws940c
The WS940C is a high-performance ride on laser screed designed for precision, efficiency, and durability. Powered by a reliable Honda engine and built with a lightweight aluminium frame, it’s ideal for a range of demanding job sites. With advanced features like an anti-slip system, hydraulic brakes, precision height adjustment and dual tire options, the WS940C delivers smooth, accurate levelling for consistent concrete finishes. Perfect for those seeking power, control, and long-term reliability.
Key Features
- Honda Engine Reliable, fuel-efficient performance for consistent operation.
- All-Aluminium Body Lightweight and easy to manoeuvre in various site conditions.
- Anti-Slip System Enhances safety and control during operation.
- Hydraulic Brake & Trailer System Ensures smooth stopping and convenient transport.
- Precision Height Adjustment Rod Delivers fast and accurate elevation control.
- Soft Landing Function Reduces impact during lowering for improved durability.
- Switch Detection & Valve Calibration Maintains long-term performance and stability.
- Dual Tyre Options Equipped with both solid and pneumatic tyres to suit different job sites.
Technical Specifications
Engine Model HONDA GX690 Power 18.4kW/ 25HP Fuel Type Petrol Fuel Tank Capacity 19L Levelling Width 3.0M / 9.84FT Vibration System Hydraulic vibration Tyre Inflatable narrow tyres (with inflatable wide tyres) Exciting Force 2000N (MAX) Net Weight 835KGS / 1841LBS Dimensions 3470X3430X1525MM / 11.38X11.25X5.00FT Paving Mode Hydraulic spiral conveyor paving
High Performance Ride On Laser Screed Machine
High Performance Ride On Laser Screed Machine
High Performance Ride On Laser Screed Machine
Intelligent operator panel, compact design and easy to operate.
LASER SYSTEM
High Performance Ride On Laser Screed Machine
High Performance Ride On Laser Screed Machine
The laser transmitter has dual slopes and can be remotely controlled.
VIBRATOR
High Performance Ride On Laser Screed Machine
TURN THE WORK HEAD TO THE RIGHT
Using a hydraulic vibration motor you can vibrate and remove air from the concrete more effectively.
TURN THE WORK HEAD TO THE RIGHT
TURN THE WORK HEAD TO THE RIGHT
TURN THE WORK HEAD TO THE RIGHT
The Auger is used for paving and can be switched left and right. Made of iron, which has high strength and durability and is not easily deformed.
POWERFUL GENERATOR
TURN THE WORK HEAD TO THE RIGHT
POWERFUL GENERATOR
Built for durability and stable performance, it handles high-intensity work with ease.
